Ground Plate

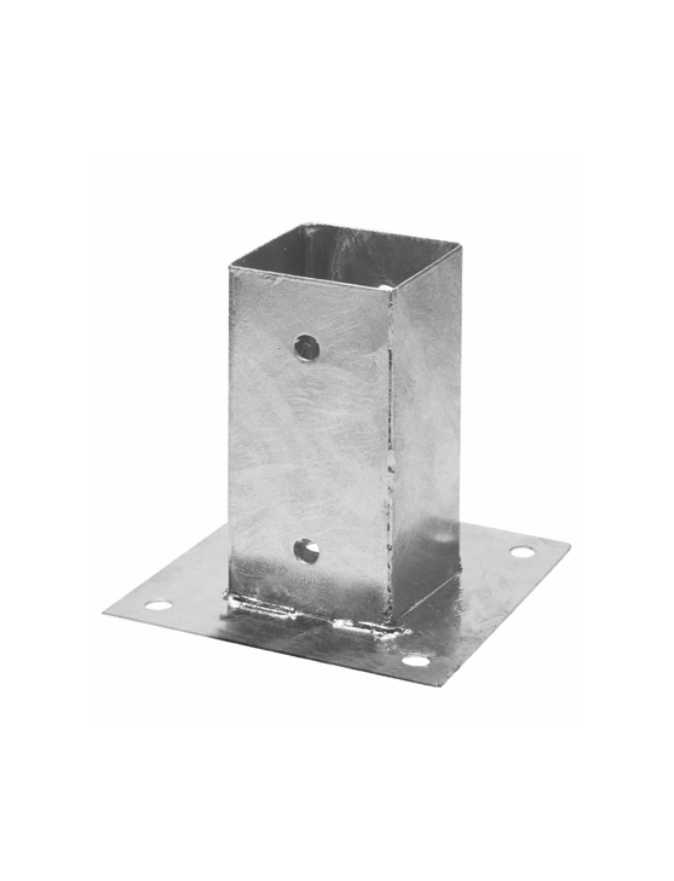

Standard

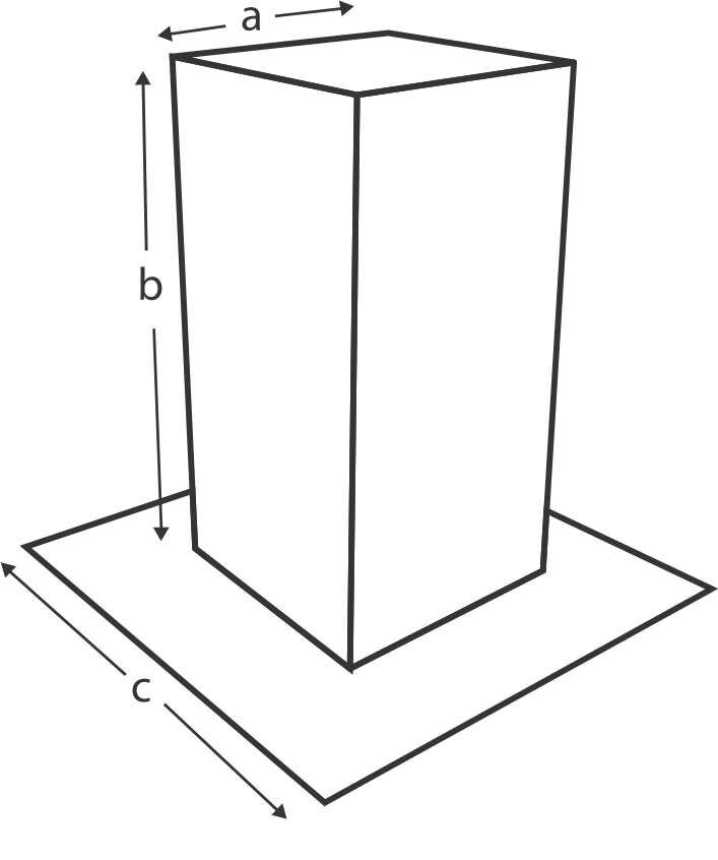

Ground Plate	a	b	c
SEGP-001	46×46	150	100
SEGP-002	51×51	150	100
SEGP-003	61×61	150	150
SEGP-004	71×71	150	150
SEGP-005	76×76	150	150
SEGP-006	91×91	150	150
SEGP-007	96×96	150	150
SEGP-008	101×101	150	150
SEGP-009	121×121	150	180
SEGP-0010	145×145	150	150

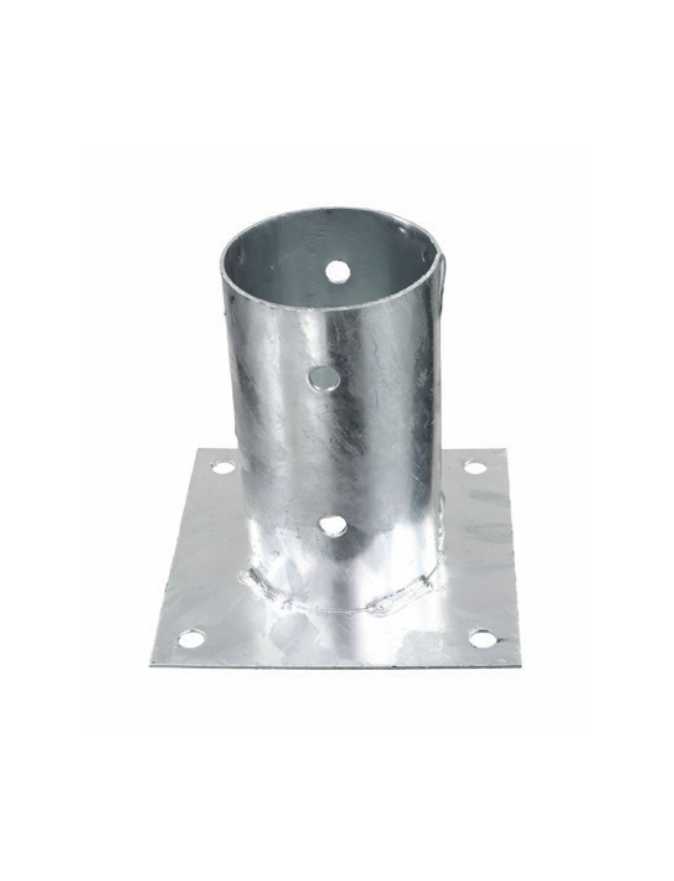

SEGP-0011	dia 81	150	150
SEGP-0012	dia 101	150	150

* Available Thickness of Base Plate 2.0 mm, 2.5 mm, 3.0 mm

* Finish Available
1) Hot Dip Galvanized
2) Electro Zinc Plated
3) Powder Coated
4) Stainless Steel
